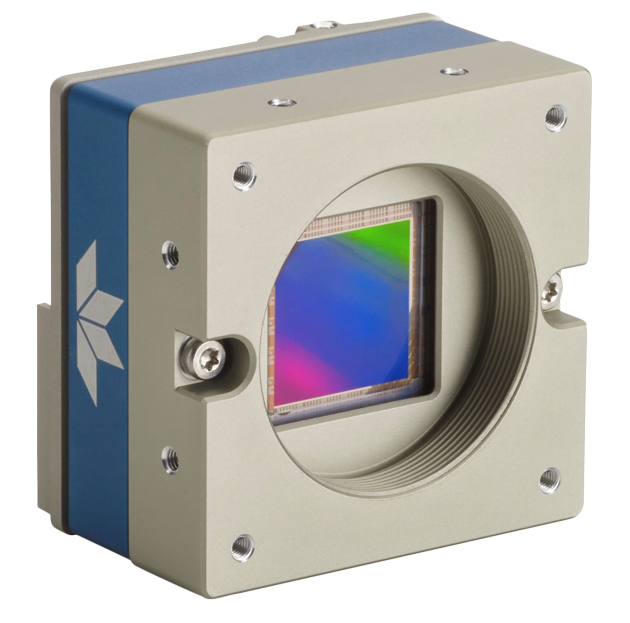

Teledyne DALSA Genie Nano-10G-M6200 (mono) | Nano-10G-C6200 (color)
Teledyne Dalsa Genie Nano 10GigE cameras feature 10Gbps (10GBASE-T) link speeds required by many of today's industrial applications. These compact industrial cameras also work at 1GigE, 2.5GigE, and 5GigE speeds for existing applications. They operate in the visible (400-700 nm), and near infrared (700-1000 nm) spectrum ranges.
All Teledyne Dalsa Genie Nano GigE, 5GigE Cameras, and 10GigE cameras are compact industrial cameras, backed with a 3 year warranty. Genie Nano cameras are ideal for industrial applications such as inspection, robotics, medical, scientific imaging, and microscopy.
Genie Nano GigE, 5GigE, and 10GigE Cameras Features
Nano-10G-M6200 | Nano-10G-C6200 Camera Features
Nano-10G-M6200 | Nano-10G-C6200 Datasheet
Nano-10G-M6200 | Nano-10G-C6200 Manual
| Manufacturer: | Teledyne DALSA | Model: |
Nano-10G-M6200 Nano-10G-C6200 |
Total Pixels: | 37,748,736 |
| Resolution: | 6144 (h) 6144 (v) | Sensor Size: | 1.4" | Color/B & W: | Color / Monochrome |
| Frame Rate (fps): | 20 | Sensor Type: | CMOS | Sensor Device: | e2v Emerald 36M |
| Pixel Size(µm): | 2.5(h) 2.5(v) | A/D Bits: | 10 | Shutter Speed: | call |
| Interface: | 10GigE | Voltage(VDC): | PoE or 10-36 VDC | Power(watts): | 10.5 |
| Lens Mount: | M42-mount | Shutter Type: | Global | Weight(grams): | 183 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 41Lx59Wx59H |
